TECHNICAL SPECIFICATIONS

Basic Information
Part Number 50087399-001

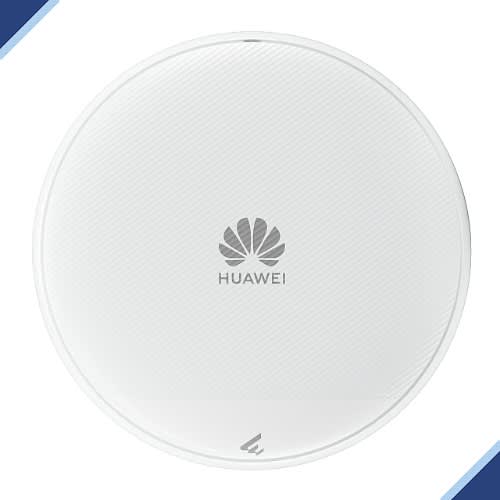

Model AP371
Description AP371 (11be indoor, 2+2 dual bands, smart antenna, USB, BLE)
First supported version V600R023C10
Full Technical Specifications
Installation Type Wall, Ceiling, T-Rail
Diameter (mm) 180 mm
Height (mm) 35 mm
Weight with packaging (kg(lb)) 0.69 kg (1.52 lb)
Weight without packaging (kg(lb)) 0.47 kg (1.04 lb)
Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing
Maximum power consumption (W) 13.60 W
Maximum heat dissipation (BTU/hour) 44.1
Power supply mode DC adapter, PoE
Input voltage range (V) DC: 12 V ± 10%
PoE: 802.3at/af
Rated input voltage (V) 12 V
802.3at power supply description No function is limited.
DC power supply description No function is limited.
802.3af power supply description The USB function is not supported. Other functions are not restricted.
Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be
5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Antenna gain (dBi) 2.4 GHz:
4 dBi/chain (peak gain)
1 dBi (combined gain)
5 GHz:
5 dBi/chain (peak gain)
3 dBi (combined gain)
BLE: 4 dBi (peak gain)
Maximum transmit power (dBm) 2.4 GHz:
20 dBm/chain
23 dBm (combined power)
5 GHz:
20 dBm/chain
23 dBm (combined power)
Radio number 2
MIMO spatial streams Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2
Radio interface Built-in smart antennas
Operating frequency band 2.4GHz,5GHz
Storage NAND Flash 256MB
Long-term operating temperature (°C(°F)) –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m (5905.51 ft. to 16404.20 ft.), the maximum temperature of the device decreases by 1°C (1.8°F) for every 300 m (984.25 ft.) increase in altitude.)
Storage temperature (°C(°F)) –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity (RH) 5% RH to 95% RH (non-condensing)
Long-term operating altitude (m(ft.)) –60 m to +5000 m (–196.85 ft to +16404.20 ft)
MTBF (year) 158.215
MTTR (hour) 2
USB The USB function is unavailable and will be supported through software upgrades.
Console port BLE Console
Atmospheric pressure (kPa) 53kPa - 106kPa ETSI 300 019-2-3
Service port surge protection (kV) PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B
Ground Floating Ground
BLE BLE5.4
3G/LTE filter (ACC) Supported
