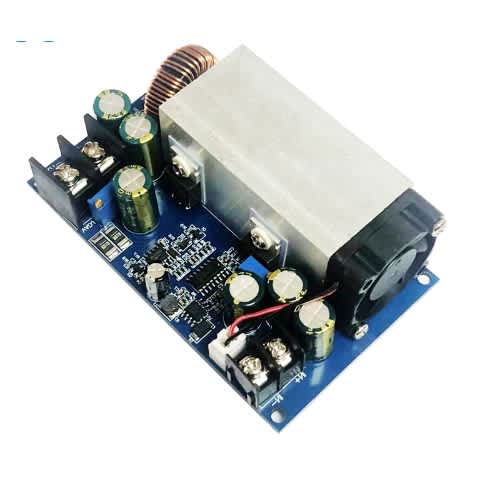

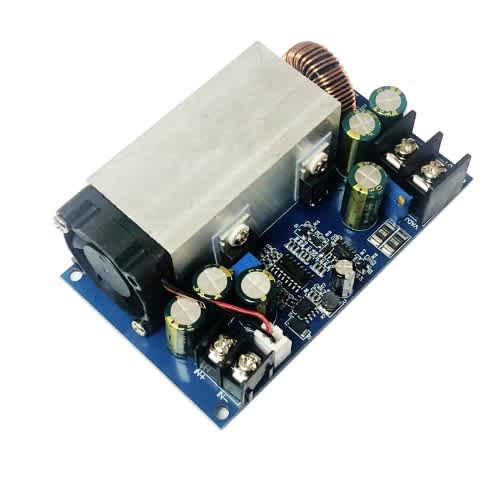

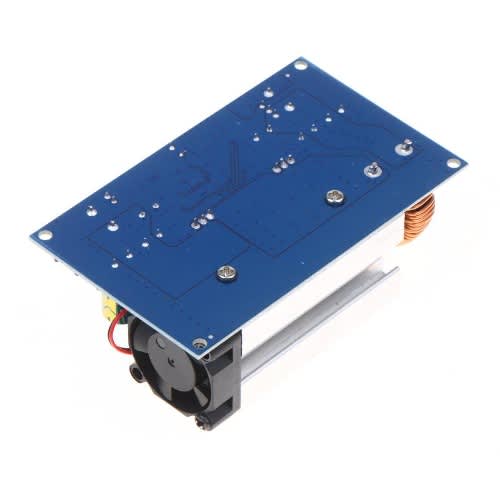

The 600W 25A DC-DC Adjustable 12V-75V To 2.5V-60V Step-down Buck Converter is designed to convert a higher DC input voltage to a lower, adjustable DC output voltage with constant current and constant voltage capabilities. It adopts step rectification scheme with high efficiency and the highest efficiency can reach 95%. The output voltage and current can be adjusted continuously. This module converts higher DC voltage (12V-75V) to lower levels (5V, 19V, 21V, 24V, 48V). This module allows users to fine-tune the output voltage to meet their specific requirements. It's particularly useful in projects requiring a specific voltage to power devices or components in electronic systems, ensuring compatibility and optimal performance. This module is versatile and can be utilized in various applications, including powering LED lights, charging batteries, and providing stable voltage to microcontrollers or sensors. Its ability to handle high current makes it well-suited for automotive applications, electric bicycles, and renewable energy systems. Its adjustable voltage output allows for tailored solutions across different electronic projects.

This 600W 25A DC-DC Adjustable 12V-75V To 2.5V-60V Step-down Buck Converter can effectively work with solar panels, making it suitable for solar energy projects. By stepping down the voltage from solar panel output (which can vary based on sunlight exposure) to a stable lower voltage, it helps in charging batteries or powering devices directly. This feature allows for an efficient and reliable energy conversion in renewable energy setups.

Features
Step rectification scheme for high efficiency (up to 95%).
Continuously adjustable output voltage and current.
Wide input voltage range: 12V to 75V.
Maximum output current: 25A.
Output Constant Current: 1A to 25A
Operating Frequency: 80KHz
Output Feedback: None (Requires External diode for inductive loads like battery charging)
Maximum output power: 600W (continuous working power: 500W).
Short-circuit protection with constant current limiting.
Output voltage indicated by a blue LED light.
Safety Instructions
Reverse Polarity Protection: The module does not have input reverse polarity protection. Ensure correct positive and negative connections to prevent damage.
Step-Down Operation: This is a step-down converter. The input voltage must always be higher than the desired output voltage.
Inductive Loads: When charging batteries or connecting to other inductive loads, an anti-backfilling diode must be added to the output to prevent damage to the module.
Heat Dissipation: For prolonged operation at high power and high current, ensure adequate heat dissipation. This may require additional cooling beyond the integrated fan.
Low-End Current Detection: The module uses low-end current detection. Do not short-circuit the input negative electrode and the output negative electrode directly with a wire, as this can damage the power supply and connected equipment.
Professional Use: This module is intended for users with sufficient knowledge of electronics and power systems. Incorrect use can lead to electric shock, fire, or damage to equipment.
Setup and Connections
Before connecting the module, ensure all power sources are disconnected. Observe proper polarity for all connections.

Input Connection: Connect your DC input power source (12V-75V) to the IN+ (Input Positive) and IN- (Input Negative) terminals. Double-check polarity before applying power.
Output Connection: Connect your load to the OUT+ (Output Positive) and OUT- (Output Negative) terminals.
Inductive Loads: If connecting an inductive load (e.g., battery for charging), install an appropriate anti-backfilling diode in series with the positive output line to prevent current backflow.
Operating Instructions
The module allows for continuous adjustment of both output voltage and current. A multimeter and a flat-head screwdriver are required for these adjustments.

Voltage Regulation
Connect the input power source.
Connect a multimeter to the output terminals in voltage measurement mode.

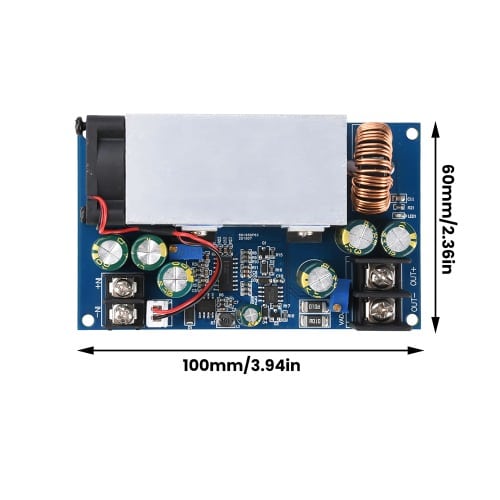

Locate the blue potentiometer labeled "VIADJ" on the power supply board (refer to Figure 4.1).
Rotate the "VIADJ" potentiometer clockwise to increase the output voltage, or counter-clockwise to decrease it, until the desired voltage is reached.
Ensure the input voltage is sufficiently higher than the target output voltage.
Output Current Adjustment (Constant Current Mode)
This procedure sets the maximum output current. When the load attempts to draw more current than this set value, the module will enter constant current mode, limiting the current to the set value and reducing the output voltage as necessary.

Connect the input power source.
Set the output voltage to approximately 5V using the "VIADJ" potentiometer (as described in Section 5.1).
Locate the constant current potentiometer labeled "IADJ" (refer to Figure 4.1).
Turn the "IADJ" potentiometer counter-clockwise approximately 10 full turns to set the current to its minimum value. Note: At this minimum setting, the power supply may temporarily have no output voltage. This is normal.
Connect a multimeter or ammeter in series with the output (or short-circuit the output with the multimeter in 10A/20A current measurement mode, ensuring the multimeter can handle the expected current).
Slowly turn the "IADJ" potentiometer clockwise until the multimeter displays the desired maximum output current.
Remove the multimeter from the short-circuit condition and connect your actual load. The module will now limit the current to the set value.
Maintenance
The 600W 25A Step-Down Adjustable Power Module is designed for reliable operation with minimal maintenance. However, proper care ensures longevity and performance.

Cleaning: Keep the module free from dust and debris. Use a soft, dry brush or compressed air to clean the heatsink and fan periodically. Ensure power is disconnected before cleaning.
Ventilation: Ensure adequate airflow around the module, especially when operating at high power. Do not obstruct the fan or heatsink.
Environmental Conditions: Operate the module within its specified temperature and humidity ranges. Avoid exposure to moisture or corrosive environments.
Connection Integrity: Periodically check all input and output connections to ensure they are secure and free from corrosion.
Troubleshooting
No Output Voltage:
Check input power supply: Ensure it is connected correctly and providing voltage within the 12V-75V range.
Verify input/output polarity: Incorrect connections will prevent operation and may damage the module.
Check "IADJ" potentiometer: If the constant current potentiometer was turned fully counter-clockwise, the output voltage might drop to zero. Turn it clockwise to increase the current limit and restore output voltage.
Ensure input voltage is higher than desired output voltage.
Output Voltage Not Adjustable:
Confirm the "VIADJ" potentiometer is being adjusted.
Ensure the input voltage is stable and within the specified range.
Output Current Not Adjustable:
Confirm the "IADJ" potentiometer is being adjusted.
Ensure the load is drawing current. The constant current function only activates when the load attempts to draw more than the set limit.
Verify the multimeter is correctly set to current measurement mode and connected in series with the load or used to short-circuit the output during adjustment.
Module Overheating:
Reduce the load or input/output differential.
Ensure adequate ventilation and clear any obstructions from the heatsink and fan.
Verify the fan is operating correctly.
