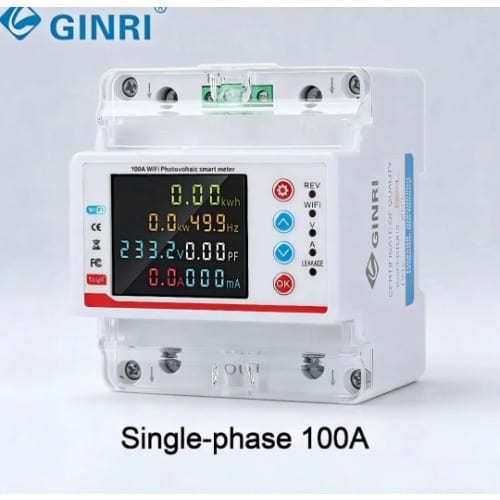

Smart Wifi Multifunction Energy/Current/Voltage Protection Meter -100A Single phase

Are you sharing one prepaid meter? Do you want to allocate units to each tenant? Do you want to control your energy consumption from anywhere in the world via remote monitoring on your phone or laptop? Do you want power to automatically cut off once you exhaust the units allocated? Do you want to switch off and on power in your house or appliances remotely?

Then this meter is for you!

Function

1. Remote control at anytime from anywhere

2. Schedule/ Timer

3. Energy monitoring and Allows units allocation to different tenants on one prepaid meter
4. You can remotely switch on and off your home or house appliances from anywhere in the world

4. Under voltage protection 150V-190V(adjustable)(default: 170V)

5. Over voltage proteciton 250V-300V(adjustable)(default: 270)

6. Over current protection 1A-200A(adjustable)

7. Electric leakage protection: 10-99mA

8. Preset current/ voltage threshold values by app, Once the real-time/ current/ voltage reaches the threshold values, The connected electrical appliances will be turned off automatically

Specification

Rated Supply Voltage: AC 220V

Operation Voltage Range: AC80-400V( single phase)

Rated Frequency: 50/60HZ



Range: 0-99999.9kw/h
Product Name:
WIFI Leakage Reclosing Power Protector
rrent setting:
1-100A
Rated voltage:
AC220V/110V
Insulation voltage:
400V
Withstand voltage:
AC 80V-300V
Protection rating:
IP30
Display mode:
LED display tube
Control method:
Manual/Automatic
Frequency:
50/60Hz
Temperature range
-40°℃-150°℃
Overvoltage range:
130-300V
Altitude:
≤2000m
Undervoltage range:
75-210V
Humidity:
<50%at40°℃(non-condensing)

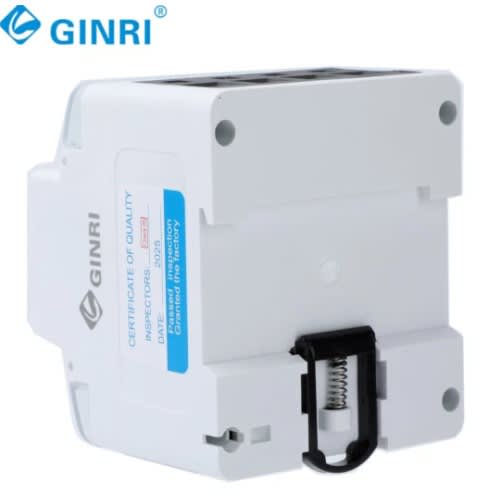

Installation method:
Guide rail installation
Electrical life:
10000times
Power-on protection:
1-30 seconds
Maximum power:
15KW
