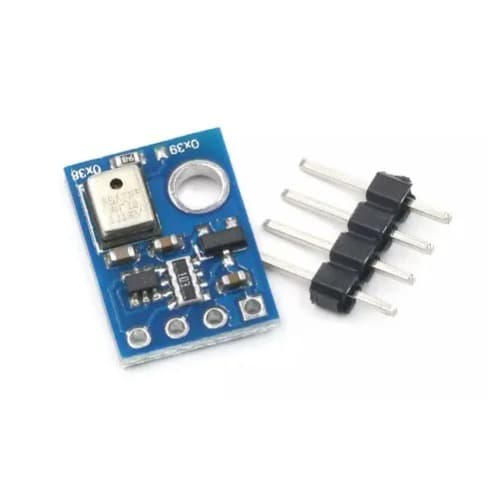

The AHT10, is a precision digital temperature and humidity sensor renowned for its exceptional accuracy and reliability. With a temperature measurement range spanning from -40°C to 85°C and an accuracy level of ±0.3°C, coupled with a humidity measurement range of 0% to 100% and an accuracy of ±2%, the AHT10 excels in delivering crucial environmental data for a multitude of applications, including weather monitoring, HVAC systems, home automation, and IoT devices. Its compact design, low power consumption, and I2C interface make it effortlessly integratable into various projects, while its stability ensures long-term consistency in measurements, ideal for continuous monitoring and data logging. Whether for a weather station, smart home system, or industrial automation, the AHT10 sensor is a valuable component, providing precise environmental insights to elevate project efficiency and performance.

 AHT10 Pinout Configuration:

Features:

• Interface type: I2C (0x38)
• Operating voltage: 3.3V – 5V
• Measuring range:
• Temperature: -40°C to 85°C
• Humidity: 0% to 100% ±2%RH
• Temperature accuracy: ±0.3°C
• Temperature resolution: 0.01 °C
• Humidity resolution: 0.024%
• Humidity accuracy: 2%
• Fully calibrated
• Excellent long-term stability
• Fast response and strong anti-interference ability

Applications:

• HVAC
• Dehumidifiers
• Testing and testing equipment
• Consumer goods
• Automobiles
• Automatic control
• Data logger
• Weather home appliances
• Humidity regulation
• Medical and other related temperature and humidity detection and control.
