PRODUCT DESCRIPTION

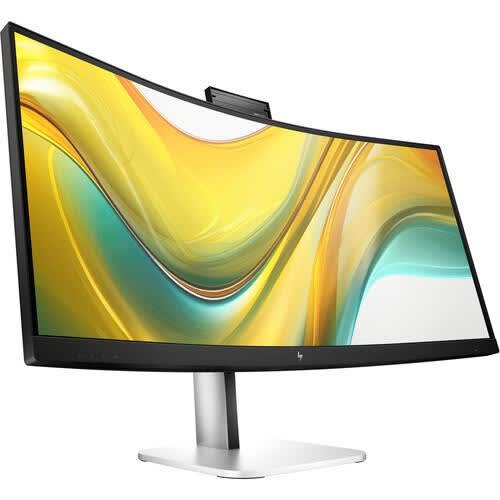

Collaborate with confidence with the Series 5 Pro 534pm 34" 1440p Ultrawide Curved Conferencing Monitor. With a curved 3440 x 1440 resolution, ultrawide QHD design, this display allows you to see more at a glance while the pop-up webcam and integrated features optimize video calls. Designed to enhance productivity, you can connect your compatible laptop through the USB-C port to transfer video, data, and up to 100W of power over a single cable. HDMI 2.0 and DisplayPort 1.4 inputs are also available. A 15W USB-C port allows you to keep your devices charged while you work. The Gigabit speed RJ45 Ethernet port lets you connect to wired networks. The 1500R curved design works with the 178° viewing angles allows you to see more at a glance by closely matching the human field of vision. Inside a slim bezel frame is a 34" VA panel that delivers lifelike photos and videos with support for 16.7 million colors, a 4000:1 static (10 million:1 dynamic) contrast ratio, 5 ms GtG response time, and 400 nits brightness. The pop-up 5MP (2592 x 1944), 30 fps webcam helps you look your best with an 80° diagonal field of view. Windows Hello infrared facial recognition support allows you to log in with just a glance. An integrated dual microphone system is designed to clearly pick up your voice.  Enjoy immersive audio with the built-in four-speaker system. You can connect a headset to the 3.5mm audio jack for added privacy. A built-in USB 3.2 Gen 1 hub and KVM switch allow you to control up to two devices through the monitor simultaneously using a single mouse and keyboard in Picture-by-Picture (PbP) and Picture-in-Picture (PiP) modes. Adjust the screen's height, tilt, and swivel to match your comfort. You can also use the 100 x 100mm VESA pattern to mount the monitor onto a wall, swivel arm, or multi-monitor stand. An ambient light sensor helps to optimize your screen while TUV certified Eye Ease features reduce eyestrain with flicker free and blue light reducing technologies.

534PM Specs
Key Specs
Display Size
34"
Panel Type
VA LCD
Native Resolution
3440 x 1440
Maximum Brightness
400 nits / cd/m2
HDR Support
No
Color Support
16.7 Million Colors (8-Bit)
Color Gamut
99% sRGB
Finish
Anti-Glare
Touchscreen
No
A/V Inputs
1x DisplayPort 1.4
1x HDMI 2.0
USB I/O
1x USB-C 3.0 / 3.1/3.2 Gen 1
1x USB-C 3.0 / 3.1/3.2 Gen 1 with DP Alt Mode, USB PD 100 W
3x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-B (Unspecified Version)
Show More
Built-In Speakers
Yes: 4x 3 W
Webcam
Yes: User-Facing 5 MP
Display
Display Size
34"
Panel Type
VA LCD
Aspect Ratio
21:9
Native Resolution
3440 x 1440
Maximum Brightness
400 nits / cd/m2
HDR Support
No
Contrast Ratio
4000:1
Response Time
5 ms (GtG)
Refresh Rate
100 Hz
Variable Refresh Technology
No
Color Support
16.7 Million Colors (8-Bit)
Color Gamut
99% sRGB
Viewing Angle (H x V)
178 x 178°
Curved Display
Yes: 1500R
Finish
Anti-Glare
Surface
Touchscreen
No
Connectivity
A/V Inputs
1x DisplayPort 1.4
1x HDMI 2.0
A/V Outputs
1x 1/8" / 3.5 mm (Headphone)
HDCP Support
Yes
USB I/O
1x USB-C 3.0 / 3.1/3.2 Gen 1
1x USB-C 3.0 / 3.1/3.2 Gen 1 with DP Alt Mode, USB PD 100 W
3x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-B (Unspecified Version)
Ethernet I/O
1x RJ45 Gigabit Ethernet
Multi-Input Support (PIP/PBP)
Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Speaker
Built-In Speakers
Yes: 4x 3 W
Hardware
Built-In Mic
Yes
Camera
Webcam
Yes: User-Facing 5 MP
Electrical
Power Consumption
Maximum: 265.0 W
Typical: 45.0 W
Input Power
100 to 240 VAC, 60 / 50 Hz
Power Adapter Type
Internal

BOX CONTENT

• the monitor
• power cable
• adator
• user manual
