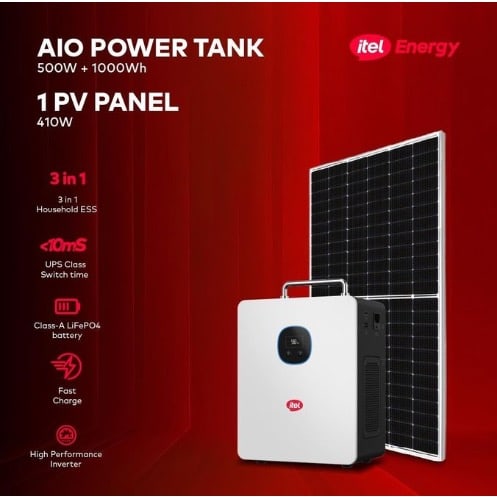

iTel 500W Solar Generator + 620W Solar Panel Kit
The iTel 500W Solar Generator + 410W Solar Panel Kit is an efficient, all-in-one power solution for homes, offices, and small businesses. It includes a 500W hybrid inverter with a 1kWh LiFePO4 lithium battery and a 410W monocrystalline solar panel for fast charging and reliable performance.
ADDITIONAL INFORMATION
| Model |
IESS-05K10N
|
|---|
| MPPT Tracking Efficiency |
99.0%
|
|---|
| Max. Battery Mode Conversion Efficiency |
88.0%
|
|---|
| Max. PV Input Power |
400W
|
|---|
| Max. PV Input Voltage |
60V
|
|---|
| MPPT Voltage Range |
11~60V
|
|---|
| Number of MPP Trackers |
1
|
|---|
| Max. Grid Input Voltage (Absolute Maximum Ratings) |
380Vrms
|
|---|
| Input Voltage Range |
90-280VAC
|
|---|
| OVP Voltag |
280±10VAC
|
|---|
| Maximum AC Input Power(Bypass mode+Battery charge) |
1000W
|
|---|
| Maximum AC Input Current(Bypass mode+Battery charge) |
6A
|
|---|
| Nominal Operating Frequency |
50Hz/60Hz
|
|---|
| Nominal AC Output Power (Inverter mode) |
500W
|
|---|
| Max. output apparent power (Inverter mode) |
600VA
|
|---|
| Nominal AC Output Voltage(Inverter mode) |
230VAC
|
|---|
| Total Voltage Harmonic Distortion (Inverter mode) |
<3%
|
|---|
| Nominal AC Output Current (Inverter mode) |
2.2A
|
|---|
| Max. Output AC Output Current Limit(Inverter mode) |
3.0A
|
|---|
| Nominal AC Frequency |
50Hz
|
|---|
| Switch Time |
<20mS
|
|---|
| Surge Power |
600VA
|
|---|
| Overload Capacity |
CC 3.0A output @ >500W
Latch output @ <165VAC
|
|---|
| Battery Type |
LiFePO4
|
|---|
| Rated Battery Voltage |
3.2VDC
|
|---|
| Rated Capacity |
314Ah
|
|---|
| Battery Energy |
1kWh
|
|---|
| Cycle Life |
6000
|
|---|
| Dimensions (L×W×H) mm |
225*139*280mm
|
|---|
| Operating Temperature Range |
-10~+60℃, >40℃ Power Derating
|
|---|
| Max. Operating Altitude |
4000m, >2000m Power Derating
|
|---|
| SOC Display |
LED
|
|---|
| Cooling Method |
Intelligent fan Cooling
|
|---|
| Noise |
＜45dB(1m)
|
|---|
| Authentication Level |
IEC62619/IEC62368/UN38.3
|
|---|
| Battery Fuse |
Yes
|
|---|
| Grid OVP |
Yes
|
|---|
| PV Over Voltage Protection |
Yes
|
|---|
| Overload Protection |
Yes
|
|---|
| Short Circuit Protection |
Yes
|
|---|
| Over Temperature Protection |
Yes
|
|---|
| Surge Protection |
AC:Type III
|
|---|
